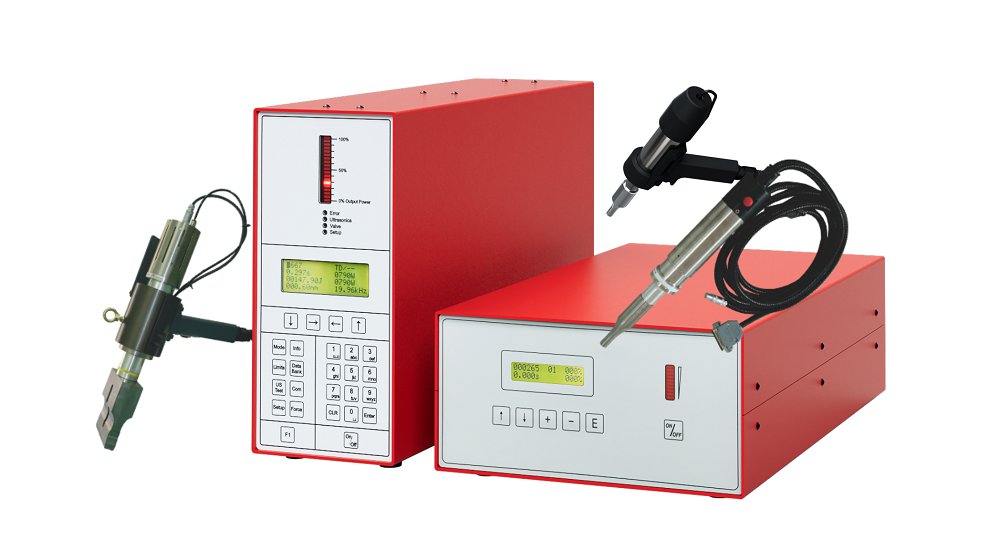

35kHz ultrasonic handheld welding machine is suitable for welding large area thermoplastic plastics.

The welding gun is ergonomically designed and comes with an ultrasonic vibration switch

· Maximum operating temperature is 60℃, can work for a long time, suitable for LCD palladium coating

Suitable for spot welding, riveting and forming

Protective wire conduit

Special structural design to achieve optimal ultrasonic conduction

Can be used with STD series microcomputer ultrasonic generator, with multiple output options

Optional air cooling device

Feature

Value

Power Requirements

190 - 265 VAC / 50 - 60 Hz single phase, supplied by electrical box

size

175 x Ø65 mm (without torch handle)

weight

1.15 kg (without welding head)

Frequency Power

35 kHz 1200W

Operation Mode

Manual control, trigger-type switch located on the welding gun handle

Ultrasonic welding head

Need to be customized

Welding head expansion method

35kHz transducer (no amplification ratio), with 1:1.5 amplifier (optional)

Wire configuration

Standard cable length is 3m, special lengths can be purchased

Applicable electric box

Boa35-600/900-Cobra XL 35-600/900

Electric box output adjustment

60-100%, adjustable

Air cooling device

Need to buy

Placement space and suitable temperature

Operating temperature -5℃ ~ 45℃ / Storage temperature -20℃ ~ 60℃

design

Switzerland
