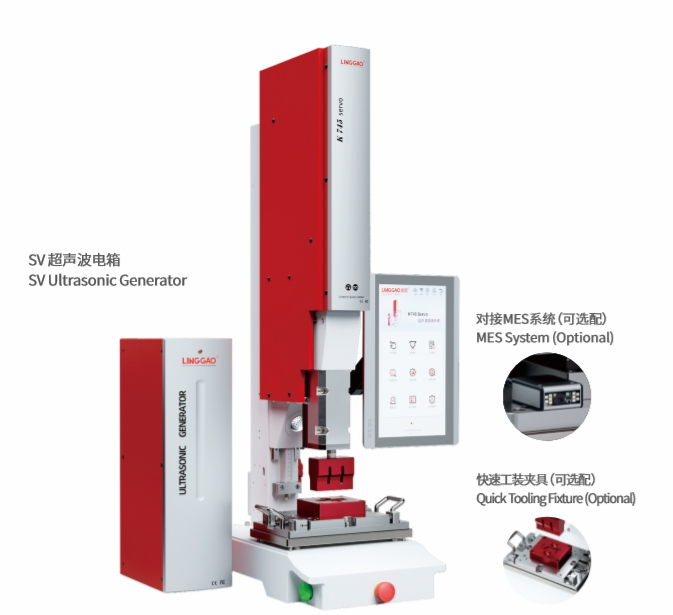

K745Servo is suitable for high-precision small-area thermoplastic welding, with a welding precision of 5μm

Operation mode: time mode/energy mode/ultrasonic stop vibration/travel mode (absolute travel mode/relative travel mode/multi-travel mode)

Amplitude management, quality management, recipe management, data export, safety management

Scan code welding mode, automated assembly line mode, European safety mode, pulse mode

Fault self-detection function, real-time automatic frequency tracking function, frequency locking function, circuit constant voltage function

MES docking system (optional), expandable safety grating, soundproof cover control, bottom mold welding parts

Detection, soft start/restart/step amplitude, etc.

Ultrasonic frequency 35kHzFrequencyUltrasonic power 900WPowerDrive Mode ofHornServo ControlOperating ModeTime Mode/Energy Mode/US-Stop Mode/Travel Mode(Absolute/Differential/Multi)Trigger ModeTravel Trigger/Pressure Trigger/Time Trigger/Time from Source/External TriggerPressure Control4 levels of actual pressure adjustmentLanguage menuChinese/English, etc.LanguageCN,EN,etc.Data Bank199 memoriesPower supply220V10%AC,single-phase50/60HzInput Voltage220V10%AC,1Phase 50/60HzThroat DepthDistance fromend face ofamplifierto base faceMin.113.3mmWeight88kg with generatorMaximum downward force745N (servo control pressure)Max.ForceGeneratorSV 35-900WSwitchesTwo-hand start with EMERGENCY STOP at frontPin Code4 digits toprotect access to parametersWelding Record100,000 pcs,Qualified product and defectiveproduct record distinctionIoT Functionsupport WiFi wireless network connection, RS485/232, USB2.0, printer output, cloud data management, remote assistance connection、RS485/232、USB2.0Printer output.Cloud data management、Remoteassistance
