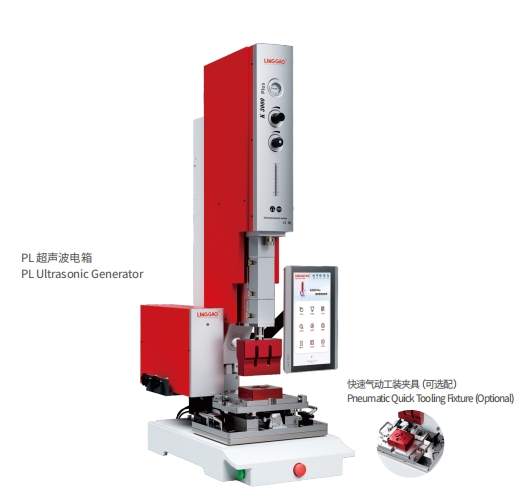

K3000Plus is suitable for high-precision welding of large-area thermoplastics, with a welding precision of 0.01mm

Operation mode: time mode/energy mode/ultrasonic stop vibration/travel mode (absolute travel mode/relative travel mode)

Time accuracy 1ms, travel accuracy 0.01mm

Trigger pressure control, welding pressure control, cooling pressure control

Amplitude management, quality management, recipe management, data export, safety management

Automated assembly line mode, European safety mode, pulse mode

Fault self-detection function, real-time automatic frequency tracking function, frequency locking function, circuit constant voltage function

Expandable safety grating, soundproof cover control, bottom mold welding parts detection, clamping control, film rolling

Re-vibration

Ultrasonic frequencyFrequency20kHzUltrasonic power3000WPowerDrive Mode ofHornPneumatics ControlOperating ModeTime Mode/Energy Mode/US-stop Mode/Travel Mode(Absolute/Differential)Trigger ModeTravel Trigger/Pressure Trigger/Time Trigger/Time from SourceLanguage menuChinese/English, etc.LanguageCN,EN,etc.Data Bank199 memoriesInput Voltage220V10%AC,1Phase 50/60HzThroat Depth248mmDistance fromend face ofamplifier to base faceMin.85mmCylinder Stroke80x100mm standard,63x100mm optionalStroke Range20~100mm,Fine-tuning supported,accuracy:0.01mm;No need to adjust the height of the press.Weight151kg with generatorMax.Force3000N at 6 bar compressed airGeneratorPL20-2000W/3000WSwitchesTwo-hand start with EMERGENCY STOP at frontPin Code4 digits to protect access to parametersWelding Record 200,000 pcs,Qualified product and defective product record distinctionIOT FunctionsupportWiFi wireless network connection、RS485/232、USB2.0、Printer output、Cloud data management、Remote assistance
