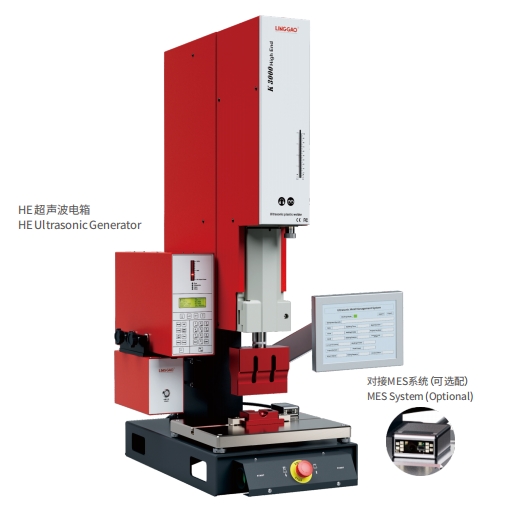

The K3000 High End series is suitable for welding large areas of thermoplastic plastics. Can be installed on special machines and production lines

The fuselage column adopts dovetail groove design, so the whole machine will not deviate during the downward pressure welding process

· Programmable control of five-stage pressure distribution

Graphical welding data curve analysis

Electromagnetic sensor precision travel measurement kit, precision +/-0.01mm

Digitally controlled pressure touch vibration kit

The ultrasonic oscillating element is easy to disassemble, making it convenient to replace the welding head, transducer and amplifier

The welding stroke is precisely controlled by the fine-tuning knob with a precision of 0.01mm

· Four-point base design, equipped with adjustment screws, can quickly adjust the bottom mold level

Use high load-resistant Roller type slide rails to ensure that the lowering welding mechanism does not shake

· Operation mode in compliance with EU CE regulations

Perfect connection with German Industry 4.0

Ai artificial intelligence ultrasonic welding machine

Feature

Value

Power Requirements

210-250V / 50 - 60 Hz single phase, powered by a power box

weight

122 kg

Press color

red

Frequency Power

20 kHz 2000W/3000W

Safety Standards

Comply with CE safety regulations

switch

Two-hand start button & emergency stop button are located on the front of the press

Drive

Double acting cylinder, Ø80mm

Compressed air demand

Maximum 7 bar, rated 6 bar, maximum air consumption per actuation at 6 bar approx. 8 IIN

Maximum downforce

3000N/1800N (when supplied with 6 bar compressed air)

Action mode

Air pressure can be programmably controlled and welding output power can be precisely adjusted

Maximum stroke

100mm

Distance from transducer to column center

212.8 mm

Applicable electric box

HE20- 2000W;HE20- 3000W;

Slide rails

The machine head is equipped with a precision Roller-type V-shaped steel ball row slide rail, and the column adopts a dovetail groove design

Welding tool fixing method

Welding head: locked on the amplifier, with a cover door to fix the bottom mold: fixed with special clamps, T-slots and flange gaskets

Connection plug

All D-sub

Place the space at the right temperature

Operating temperature -5℃ ~ 45℃ / Storage temperature -20℃ ~ 60℃

design

Switzerland
