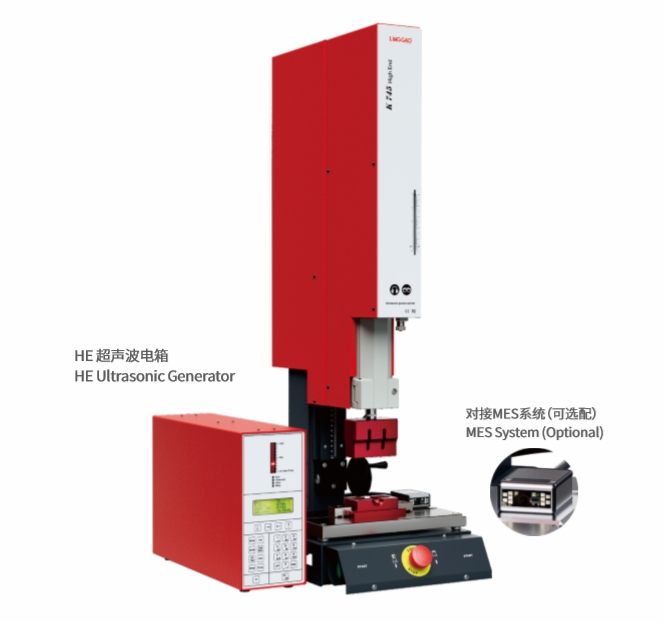

K745 High End is suitable for welding medium to small area thermoplastics. It can weld small products to prevent the internal tiny electronic parts or chips from being damaged by ultrasonic vibration.

Can be installed on special machines and production lines.

The fuselage pillar adopts a dovetail groove design, so the whole machine will not deviate during the downward pressure and upward movement.

The ultrasonic oscillating element is easy to disassemble, making it convenient to replace the welding head, transducer and amplifier.

The welding stroke is precisely controlled by the fine-tuning knob with a precision of 0.01mm.

· Four-point base design, equipped with adjustment screws, can quickly adjust the bottom mold level.

· Use linear ball bearing guide rails to ensure that the lowering welding mechanism does not shake.

· Optional travel measurement kit, pressure vibration kit, digital control kit, etc. can be purchased to improve the quality of processed products and production performance.

CE compliant operation mode.

Ultrasonic welding equipment that complies with Industry 4.0 standards.

Feature

Value

Power Requirements

220 VAC / 50 - 60 Hz single phase, powered by electrical box

weight

114 kg

Press color

red

Frequency Power

35kHz 900W

Safety Standards

Comply with CE safety regulations

switch

Two-hand start button & emergency stop button are located on the front of the press

Drive

Double acting cylinder, Ø40mm

Compressed air demand

Maximum 7 bar, rated 6 bar, at 6 bar, the maximum air consumption per actuation is about 2.5 lIN

Maximum downforce

745N (when supplied with 6 bar compressed air)

Action mode

Rapidly descend, decelerate, and then gently press on the weldment

Maximum stroke

100mm

Center distance between welding head and column

170 mm

Applicable electric box

HE35- 900W

Slide rails

The machine head is equipped with a precision linear ball bearing slide rail, and the column adopts a dovetail groove design

Welding tool fixing method

Welding head: locked on the amplifier, with a cover door to fix the bottom mold: fixed with special clamps, T-slots and flange gaskets

Pressure triggered oscillation (optional)

The press machine using differential pressure sensor needs to be equipped with TIP002 Trigger plate

Precision travel measurement (optional)

Standard integrated electromagnetic inductor, precision 0.01mm Press needs to be equipped with TIP002 Trigger plate

Connection plug

All D-sub

Place the space at the right temperature

Operating temperature -5℃ ~ 45℃ / Storage temperature -20℃ ~ 60℃

design

Switzerland
