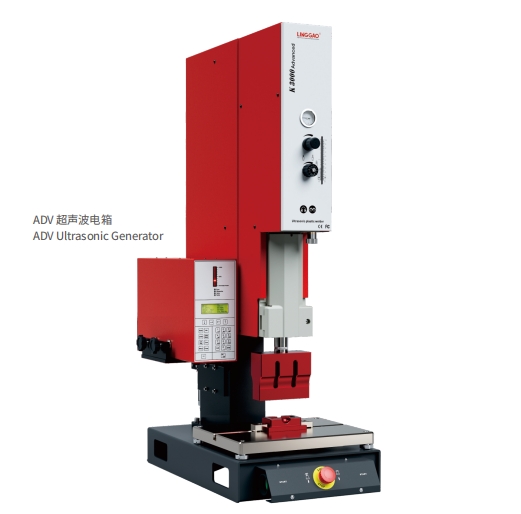

The apsonic K3000 Advanced series is suitable for welding medium to small areas of thermoplastics. It can weld small products and prevent the internal tiny electronic parts or chips from being damaged by ultrasonic vibration.

Can be installed on special machines and production lines

The fuselage column adopts dovetail groove design, so the whole machine will not deviate during the downward pressure welding process

· Programmable control of five-stage pressure distribution

Graphical welding data curve analysis

Electromagnetic sensor precision travel measurement kit, precision +/-0.01mm

Digitally controlled pressure touch vibration kit

The ultrasonic oscillator is easy to disassemble, making it convenient to replace the welding head, transducer and amplifier

The welding stroke is precisely controlled by the fine-tuning knob with a precision of 0.01mm

· Four-point base design, equipped with adjustment screws, can quickly adjust the bottom mold level

· Use linear ball bearing guide rails to ensure that the lowering welding mechanism does not shake

CE compliant operation mode

Feature

Value

Power Requirements

210 - 250 VAC / 50 - 60 Hz single phase, supplied by electrical box

weight

122 kg

Press color

red

Frequency Power

20 kHz 2000W/3000W

Safety Standards

Comply with CE safety regulations

switch

Two-hand start button & emergency stop button are located on the front of the press

Drive

Double acting cylinder, Ø63mm

Compressed air demand

Maximum 7 bar, rated 6 bar, at 6 bar, the maximum air consumption per actuation is about 2.5 lt.n

Maximum downforce

3000/1800N (when supplied with 6 bar compressed air)

Action mode

The descent speed and braking point can be programmed. The air pressure can be programmed. The welding output power can be precisely adjusted.

Maximum stroke

100mm

Distance from transducer to column center

212.8 mm

Applicable electric box

ADV 20-2000W/3000W

Slide rails

The machine head is equipped with a precision linear ball bearing slide rail, and the column adopts a dovetail groove design

Welding tool fixing method

Welding head: locked on the amplifier, with a cover door to fix the bottom mold: fixed with special clamps, T-slots and flange gaskets

Connection plug

All D-sub

Place the space at the right temperature

Operating temperature -5℃ ~ 45℃ / Storage temperature -20℃ ~ 60℃

design

Switzerland
