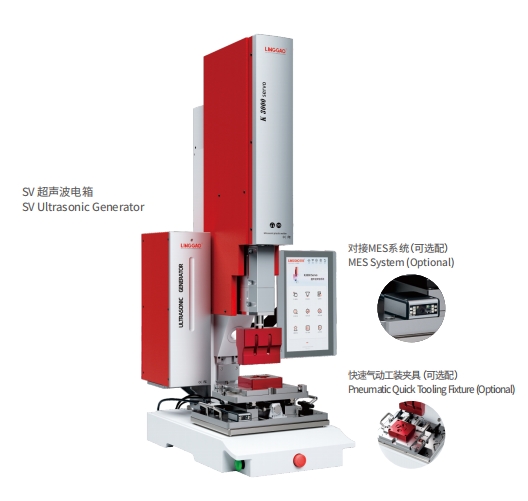

K3000Servo is suitable for high-precision large-area thermoplastic welding, with a welding precision of 5μm. Operation mode: time mode/energy mode/ultrasonic stop vibration/travel mode (absolute travel mode/relative travel mode/multi-travel mode)

High-precision pressure controllable (accuracy 1N), time accuracy 1ms, travel accuracy 5μm

Trigger pressure control, welding pressure control, welding partial pressure control, cooling pressure control

Amplitude management, quality management, recipe management, data export, safety management

Scan code welding mode, automated assembly line mode, European safety mode, pulse mode

Fault self-detection function, real-time automatic frequency tracking function, frequency locking function, circuit constant voltage function

MES docking system (optional), expandable safety grating, soundproof cover control, bottom mold welding parts

Detection, soft start/restart/step amplitude, etc.

Ultrasonic frequency 20kHzFrequencyUltrasonic power 2000W/3000WPowerDrive Mode ofHornServoControlOperating ModeTime Mode/Energy Mode/US-Stop Mode/Travel Mode(Absolute/Differential/Multi)Trigger ModeTravel Trigger/Pressure Trigger/Time Trigger/Time from Source/External TriggerPressure Control4 levels of actual pressure adjustmentLanguage menuChinese/English, etc.LanguageCN,EN,etc.Data Bank199 memoriesPower supply220V10%AC,single-phase50/60HzInput Voltage220V10%AC,1Phase 50/60HzThroat Depth248mmDistance from end face ofamplifier to base faceMin.85mmWeight172kg with generatorMaximum downward force3000N (servo control pressure)Max.ForceGeneratorSV 20-2000W/3000WSwitchesTwo-hand startwith EMERGENCY STOP atfrontPin Code4 digits to protect access to parametersWelding Record100,000 pcs,Qualified product and defective product record distinctionIoT functionSupport WiFi wireless network connection, RS485/232, USB2.0, printer output, cloud data management, remote assistance connection, RS485/232, USB2.0Printer output, Cloud data management, Remote assistanceIOT Function
